You can use Dive hands-free. Note that this article covers version 2.0.2 and later.

Supported Smart Glasses

● Monocular Type

You can use Dive with a dedicated UI. Viewing SOPs and Remote support features are available only.

• Vuzix M400 Series
• Realwear Navigator Series

● AR Glass Type

You can use the Dive app displayed in AR space. For AR SOPs and Remote support features, you can use them on an MR (Mixed Reality) basis, displayed overlaid on the real world.

• Xreal Air 2 Ultra
• XREAL One / XREAL One Pro
• MiRZA
• dynaEdge XR1

● Image of MR-based AR Objects projection

● Scan QR

There is also a Scan QR function that allows you to display SOPs directly (you can use the QR code below as a demo).

App Installation and Update Method

■ How to get the app

You can download the .apk file from here. For smart glasses not listed, please contact Dive Customer Success at customer-success@episotech.com .

You can also download via each vendor's app store for Vuzix and Realwear.

Vuzix: https://apps.vuzix.com/app/dive

Realwear: https://marketplace.realwear.com/app/com.Episotech.DiveGlasses

■ Installation Method

1. Enable Developer Mode on the device
   *This setting may not be necessary depending on the device.
2. Download the downloaded file (.apk) to your PC
3. Install Vuzix View on your PC
4. Connect the PC and device with a USB cable

5. Access the device From Vuzix View and drag and drop the file From step 1 into Vuzix View

■ Update Method

Perform the above or follow the update notification that appears when using Dive to update.

■ Support

We can provide paid support by having you send us the device. Please feel free to contact us. For Enterprise plan customers, we provide support at no charge (you bear the round-trip shipping costs).

How to Log in

1. Log in to Dive from a smartphone or PC

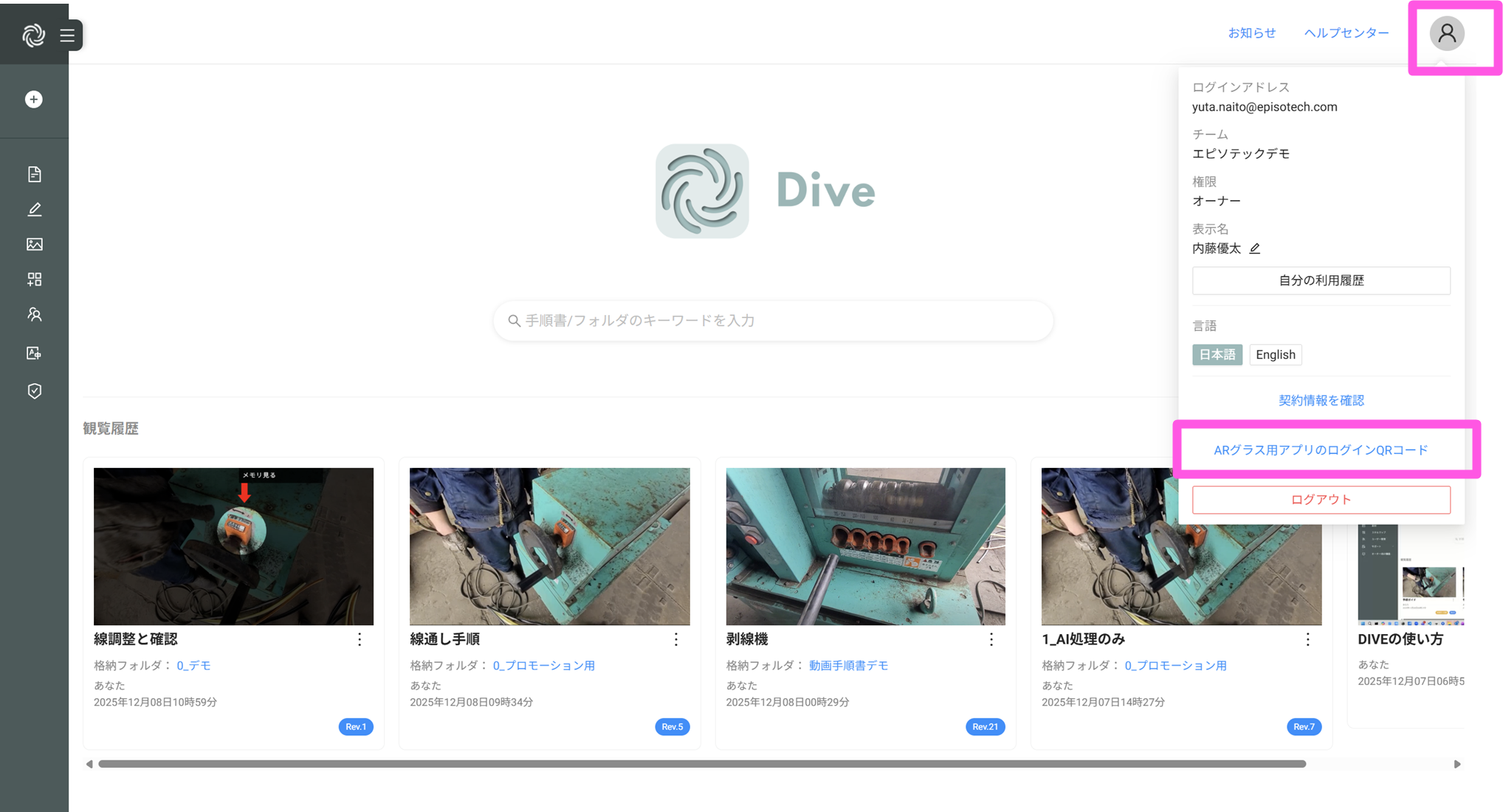

2. Display the QR Code following the instructions below. Launch the glasses app and scan it directly. Installation is complete when you see a success message.
   ＊ If you are using an app version 2.0.0 or earlier, click "For versions below 2.0.0, use this" below the QR Code to switch the QR Code.

Feature Comparison

※Offline operation available in the smartphone version of Dive can be used on all devices.
※For Xreal Air 2 Ultra and XREAL One (without XREAL Eye) Remote support, camera video cannot be shared. Audio and PC screen sharing features are available. Camera footage can be transmitted To the operator only when using XREAL One + XREAL Eye.
※AR marker Alignment is available only on devices supporting Image Tracking. XREAL One / One Pro are not supported, so please use manual Alignment.

Operation Method

About Gaze + Hand Tracking

1. Point your head toward the Target button or other element.
2. Extend your hand and perform a pinch Operation (touch your index finger and thumb together), or tap with the connected device
3. The above step 2 performs a click-equivalent Operation.

Also, if you move your hand after pinching, you can scroll the page. The default hand for Operation is the right hand.

Device-specific Operation

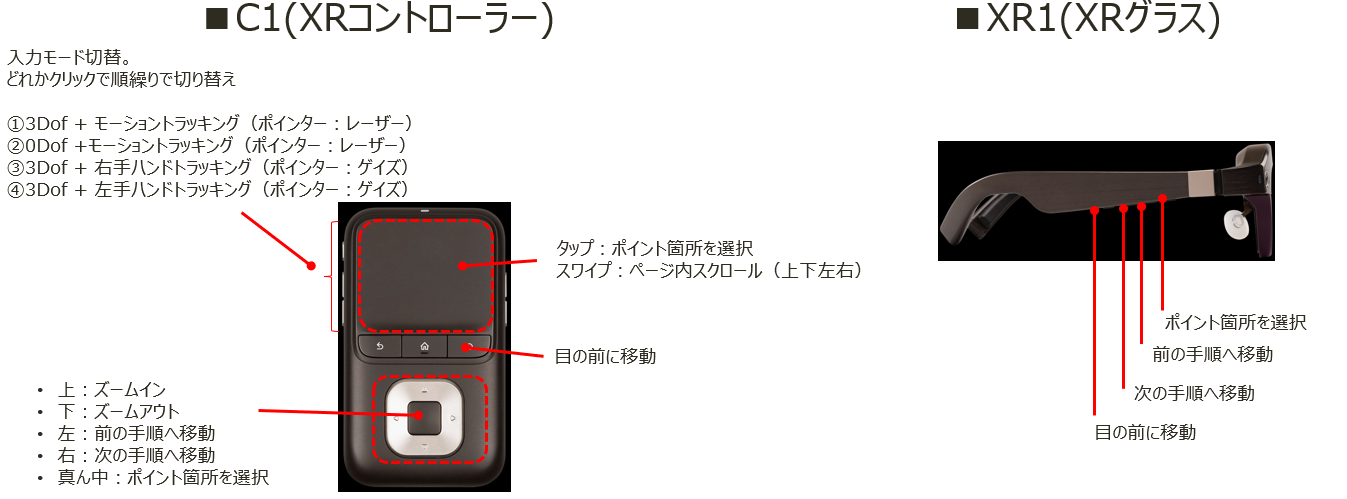

The physical button Assignments for dynaEdge XR1 are as follows

Using AR SOP

The behavior when executing "View in AR" for procedures where AR is defined varies depending on the Alignment information and device.

■ For Xreal Air 2 Ultra / XREAL One / One Pro / MiRZA

＜ In the case of standard Scan data ＞

• You will enter manual Alignment mode, so perform Alignment with the real world.
  ＜ Caution ＞
  MiRZA has constraints on SLAM stability, which can make it difficult to precisely fix AR Objects to predetermined positions in real space. Therefore, use this feature assuming approximate Alignment. If precise Alignment with the real world is required, use procedures with Immersal-based Alignment. Note that when using Immersal, registering the positional relationship between the AR marker and subsequent items is not necessary.
• For Xreal Air 2 Ultra / MiRZA, you can register the positional relationship between the Alignment result and the AR marker to facilitate adjustment in the future. If desired, a notification will appear at the end of the above process; follow the instructions.
  XREAL One / One Pro do not support Image Tracking, so AR marker registration and use are not available (the same applies when XREAL Eye is attached). Use manual Alignment each time.

• (Xreal Air 2 Ultra / MiRZA only) Print the AR marker From the following link, place the printed marker in the desired location, and register it in the process above.

  https://www.divedx.com/hubfs/OperationManual/Dive_ARMarker_250722_r0.pdf

  ＊ Precautions when printing

  • Print on A4 paper (the AR marker must be 10 cm × 10 cm in size)
  • Print at 100% (no scaling).
  • Disable the "Fit to page" setting.
  • Black and white printing is fine.

＜ In the case of Immersal Scan data ＞

Supported on XREAL One / One Pro + XREAL Eye attached / MiRZA.
Alignment is executed automatically. Confirm the Alignment results and select confirm to fix the content at that time. In the case of MiRZA, realignment continues at 1-second intervals.

■ For dynaEdge XR1

Alignment is not performed and displays in front.

Device-specific Notes

About Xreal App

Until 2024, the app was distributed through Google Play Store, but it is no longer distributed. If you are using an app downloaded From Google Play Store, please uninstall it and then Download and install the app using the method specified at the beginning.

About INMO and RayNeo Apps

The latest features are not implemented. We are considering follow-up based on your requests and adoption review phases, so please feel free to contact us.
